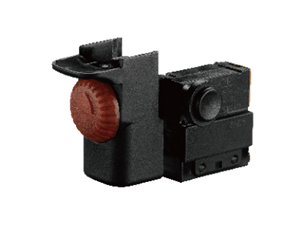

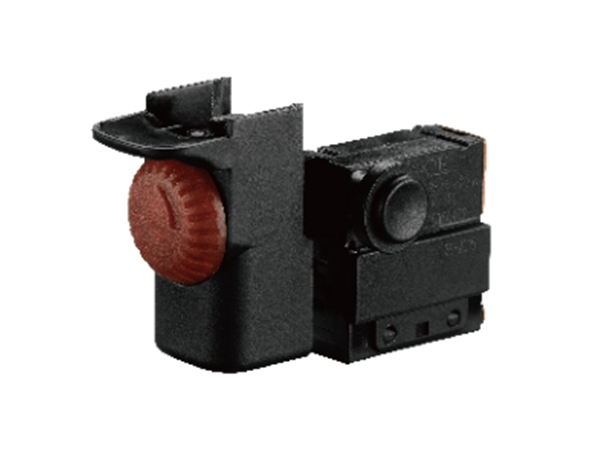

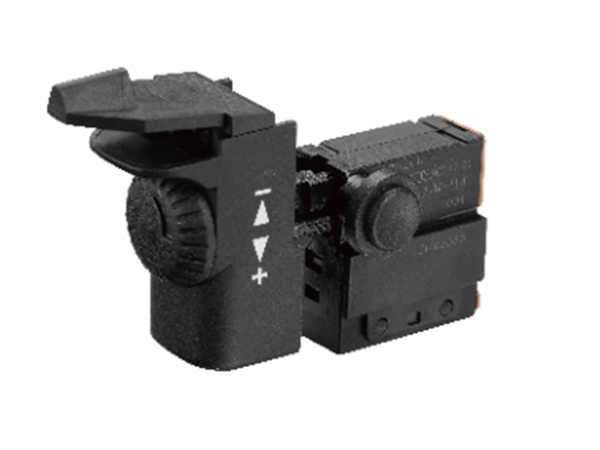

MODEL:47
Function:
Single pole switch with halfwave or fullwave speed control electronics and bypass contact.
Also available as On/Off switch.
Optional:
Lock button, various shapes and dimensions available.
Reversing module with zero current switching rotation mode.
Jumper wires between reversing module and main switch.
Potentiometer.
External power component and heatsink for higher loads.
Adjustable knob, various shapes and dimensions available.
Various shapes and dimensions of trigger head and reversing lever.
Terminals:
Push-in terminals.
Applications:
ClassⅡappliances, such as Drill, Jigsaw, Sander, Polisher, Circular Saw, Reciprocating saw.
Cricuit Diagram
Approvals
Switch Base Shape
Triggerhead Options Lockbutton Options Lever Options
